Hello,Welcome to DongGuan KaiChuang Precision Machinery Co.,Ltd!

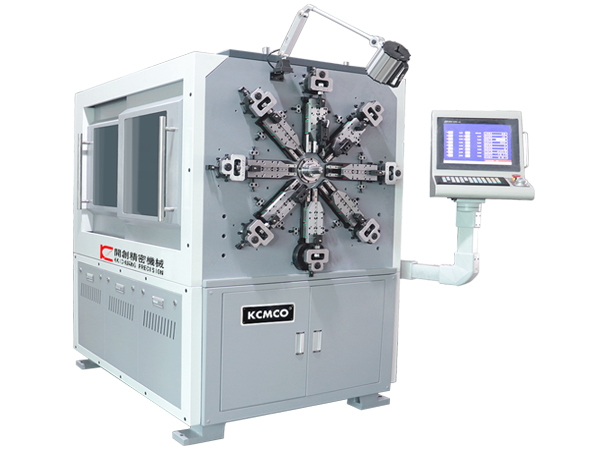

cam-less springmachine KCT-1220WZ

Description


Parameters

機型ModelKCT-1220WZ
軸數Number Of Axes12
加工線徑Wire Diameter0.3-2.0mm
加工送線速度Max. Wire Feed Speed150m/min
旋繞比Spring Index3
送線輪組數Feed Roller Group2 Groups
送線伺服電機Feed Servo Motor2.9kw
轉芯伺服電機Quill Servo Motorl.0kw
轉線伺服電機Wire Rotation Motor2.9kw
成形伺服電機Fomer Servo Motor0.85kw *8
卷曲伺服電機Spinner Servo Motor0.4kw
氣壓Air pressure0.2-0.4Pa
汽缸Air cylinder5
探針Probe5
電源Power3P/380V 50/60HZ
機器尺寸(長*寬*高)Dimension (L*W*H)1600*1160*1750mm
機器重量Weight1500KG


Prev:未完待續!
